22kW (127 cfm) BOGE Screw Compressor

MADDINGTON, WA - Delivers Nationally

22kW (127 cfm) BOGE Screw Compressor :      Ask for Price

  • Specifications
    Condition:
    New
    Type of Sale:
    Special offer
    No. in Stock
    2
    Year:
    2019
    Make:
    Boge
    Model:
    C30
    Label Value:
    Special offer
    Portability:
    Skid Mounted
    Description

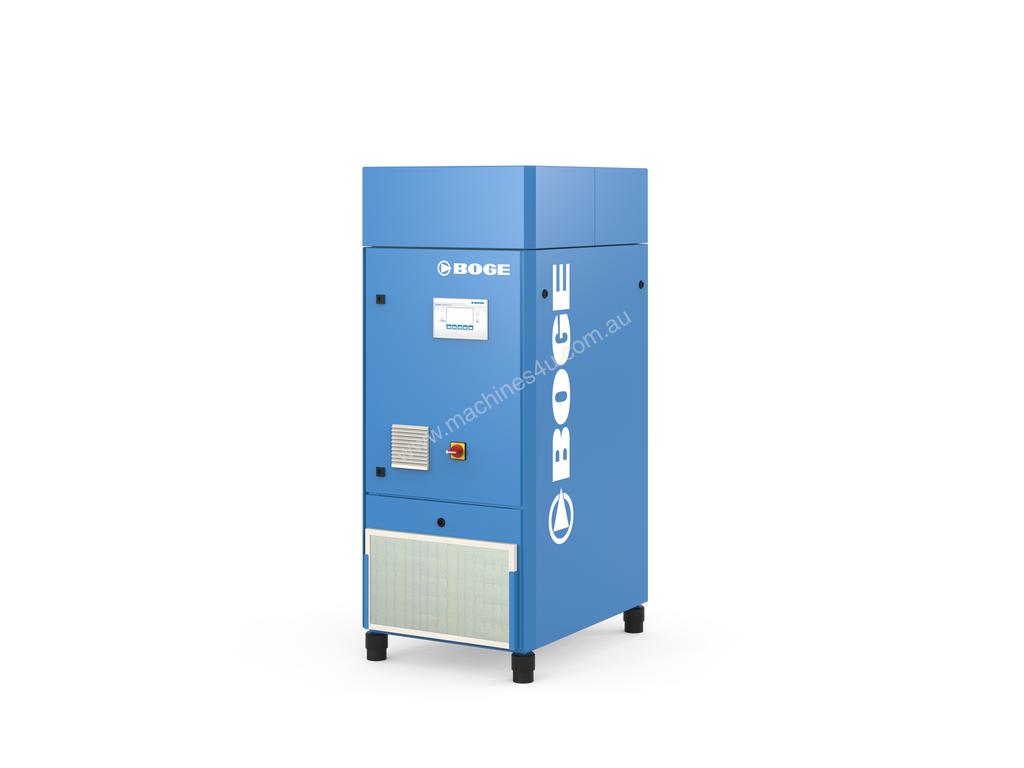

    BOGE C 30 screw compressor air cooled
    Complete and ready to connect, fully automatic operation, with CE approval stamp

    Maintenance friendly
    – For routine inspection and maintenance the entire inside must be
    easily accessible through large doors and removable sheeting in the cover
    – Very simple maintenance through common access opening for oil separator cartridge
    and high efficiency oil filter; valveless oil circuit
    – This minimises your maintenance and service costs

    Additional features
    – Compressor unit isolated from mechanical vibration
    – Motor protection IP 55 with PTC thermistors
    – Integrated electrical switch cabinet (IP 54)
    – Belt guard for safe operation
    and protection of the V-belt from dirt ingress
    – Constant low oil carry-over in all operating phases due to efficient
    pre-separation in the integral compressed air-oil separator
    – Compressed air aftercooler for low compressed air outlet temperatures
    – No condensate in the oil due to thermostatically controlled oil cooler
    – Powder coated surface, light blue, RAL 5012
    ?
    Technical Data:
    Effective free air delivery of complete unit
    measured according to ISO 1217 Part C 3,62 m³/min
    at maximum compressor overpressure 8,0 bar
    Main drive motor nominal power 22,00 kW
    Protection type / Insulation class of the motor IP 55 / F
    Operating voltage (compressor) 400 V / 50 Hz
    Control voltage (compressor) 24 V AC / 24 V DC
    Cooling air flow volume (if connected to ducting) 3450,00 m³/h
    Suction or ambient temperature (min...max) +5...+45 °C
    Compressed air outlet temperature above ambient temperature 10 K
    Residual oil content in compressed air < 3 mg/m³

    super silenced version (according to dimensioned drawing): M 3200.0920
    Unit sound pressure level (in accordance with DIN EN ISO 2151) 69 dB(A)
    Width / Depth / Height 722 / 1060 / 1740 mm
    Compressed air connection (ball valve) G 1
    Weight 546,0 kg
