Oil Free Piston Compressor Air Station - 5.5kW - (24.4 cfm) With tank and dryer

MADDINGTON, WA - Delivers Nationally

Oil Free Piston Compressor Air Station - 5.5kW - (24.4 cfm) With tank and dryer :      Ask for Price

  • Specifications
    Condition:
    New
    Year:
    Not specified
    Make:
    Boge
    Description

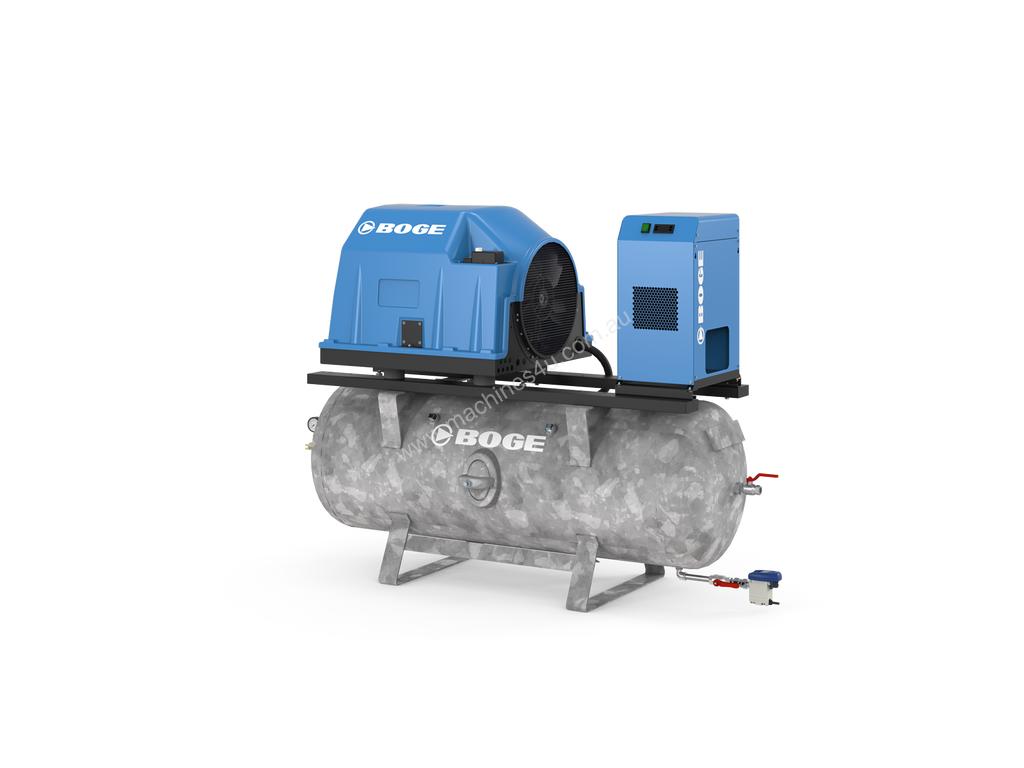

    BOGE industrial compressed air centrePO 8 LDR 270
    Piston compressor and refrigerant air dryer
    mounted on a horizontal compressed air receiver

    Automatic, air cooled, absolutely oil free compression, with CE symbol

    – Compressor and motor coupled, compact design with no transmission losses
    – Reduced piston speed for extended service life of the components
    – Long valve service life due to wear resistant frictionless lamellar valves
    – A cylinder liner made of a special aluminium alloy combined with a piston coating and piston
    rings made of a high-performance PTFE compound, in conjunction with low piston speeds
    and component temperatures, makes for virtually wear-resistant operation.

    – Intensive cooling air flow with high efficiency axial fan
    – Suction filter with micro paper element
    – Ducted cooling air across cylinder and aftercooler gives
    low compressed air temperatures and high compressed air quality
    – Crankcase with internal and external cooling for long bearing service life
    – Very efficient heat exchange through high capacity copper aftercooler
    – Vibration absorbed through flexible mountings
    – Flow-optimised cooling air cowl for low component temperature
    – Closed cover design for perfect occupational safety and increased dirt protection
    – Surface coating in light blue, RAL 5012
    – Compressed air receiver internally and externally hot dipped galvanised
    for long service life, with a handhole inspection and CE symbol
    – Receiver according to EEC-directive 2009/105,
    manufactured according to AD-regulations 2000, with CE symbol
    – Manifold complete with all necessary receiver fittings like type tested
    safety valve, pressure gauge, relief valve with threaded test point
    stop valve at the compressed air outlet, condensate manual drain valve
    – BOGE refrigerant compressed air dryer for automatic operation
    and ready for connection and operation
    – Attached, automatically actuated condensate drain as standard

    Technical Data:
    Maximum pressure 10,0 bar
    Effective free air delivery according to ISO 1217 Annex C
    measured at 80% of maximum pressure 668 l/min
    Compressor rotational speed 1450 1/min
    Average piston speed 2,27 m/s
    Main drive motor nominal power 5,50 kW
    Protection type / Insulation class of the motor IP 55 / F
    Operating voltage (compressor) 400 V / 50 Hz
    Operating- and control voltage (dryer) 230 V / 50 Hz
    Pressure dew point at operating pressure +3 °C
    Required power input of the dryer 0,15 kW
    Cooling air volume flow (dryer) 260,00 m³/h
    Cooling air volume flow (compressor) 3076,00 m³/h
    Suction or ambient temperature (min...max) +5...+40 °C
    Receiver volume 270 l
    Permissible maximum receiver pressure 11,0 bar

    Unit sound pressure level (in accordance with DIN EN ISO 2151) 83 dB(A)
    Width / Depth / Height 1858 / 770 / 1284 mm
    Compressed air connection G ½
    Weight 292,0 kg
