Oil/Water Seperator 20m3/min
Oil/Water Seperator 20m3/min : $1,800 AUD ($1,980 Inc. GST)
Oil/water separator CC 20-2
Condensate is formed in each compressor. Since the condensate of oil-lubricated compressors
becomes mixed with oil, it must be treated before disposal. Particularly with modern synthetic
compressor oils, the gravity separation used up to now does not work optimally. The BOGE
CC... -2 oil-water separators reliably separate all types of oil, so that a residual oil content
of less than 10 ppm is achieved.
Each CC..-2 is certified according to DIBt and fulfils the requirements of the
German Federal Water Act (Wasserhaushaltsgesetz, WHG).
Suitable for all oils
– Due to the tendency of modern fully synthetic oils, which are increasingly used in compressors,
to emulsify in the condensate, conventional gravity separation of oil and water is not ideal for
this purpose. The good news is that BOGE CC..-2 are able to meet this challenge and are
approved for use worldwide.
Filter indicator display
– To assess the condition of the filters, the new BOGE oil/water separators use two indicator
displays - one per tower. The display in the first tower indicates when the filter element is
saturated, while the second one reliably monitors the overflow.
– Downtimes are always unproductive - so finding a way to restrict them is a good thing.

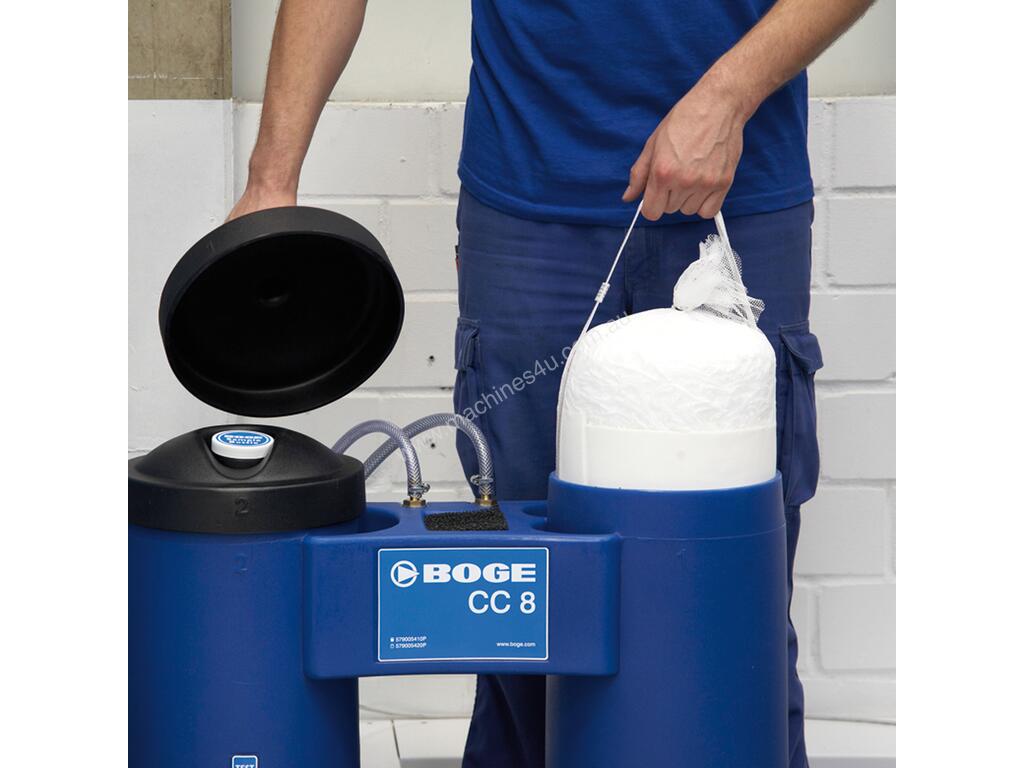

BOGE CC..-2 have ergonomically designed filter units that weigh less in saturated form
and can therefore be removed more quickly. The second condensate drain is also used
for accelerated maintenance.
Volume flow of connected upstream
BOGE compressors max. 20,00 m³/min
Receiver volume 15 l
Condensate intake (hose) 2x G 1/2
Water discharge (hose) 1x G 1
Permissible condensate temperature +5...+60 °C
Width / Depth / Height 780 / 305 / 900 mm
Weight empty 30,0 kg
