45kW (60HP) Screw Compressor 8 Bar (116 psi) BOGE

MADDINGTON, WA - Delivers Nationally

45kW (60HP) Screw Compressor 8 Bar (116 psi) BOGE :      $8,000 AUD ($8,800 Inc. GST)

  • Specifications
    Condition:
    Used
    Type of Sale:
    In Stock
    Year:
    Not specified
    Make:
    Boge
    Model:
    SD60-2
    Electrical Phase:
    Three Phase
    Engine Power (hp):
    60
    Sellers stock ID:
    5033420
    Description

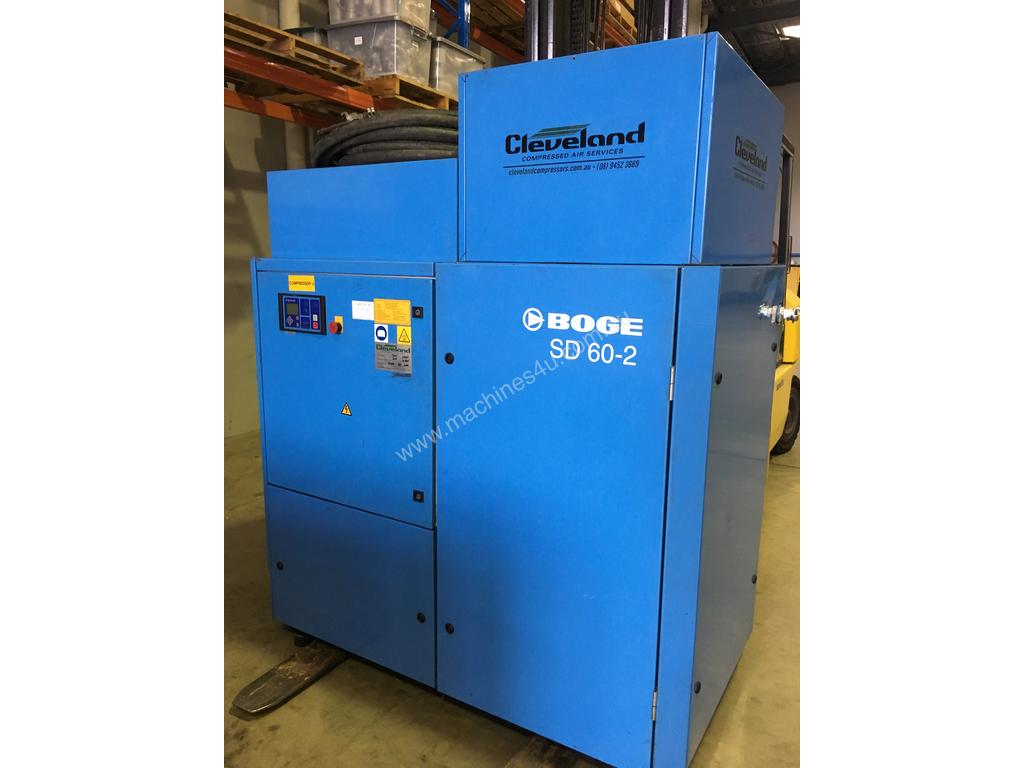

    BOGE SD 60-2 screw compressor air cooled

    Hours - 28000

    Motor Bearings Replaced - 30/5/2016


    Integral Dryer Removed

    Technical Data:
    Effective free air delivery of complete unit
    measured according to ISO 1217 Part C 7,30 m³/min (257 cfm)
    at maximum compressor over-pressure 8 bar (116 psi)
    Main drive motor nominal power 45,00 kW
    Rated capacity of fan motor 1,50 kW
    Required power input of the dryer 1,25 kW
    Protection type / Insulation class of the motor IP 55 / F
    Operating voltage (compressor) 400 V / 50 Hz
    Control voltage (compressor) 230 V AC / 24 V DC
    Operating-/control voltage (dryer) 230 V AC
    Suction or ambient temperature (min...max) +5...+45 °C
    Compressed air outlet temperature above ambient temperature 10 K
    Cooling air flow volume (if connected to ducting) 6500,00 m³/h
    Residual oil content in compressed air < 3 mg/m³
    Unit sound pressure level (in accordance with DIN EN ISO 2151) 74 dB(A)
    Width / Depth / Height 1615 / 965 / 1730 mm
    Compressed air connection (ball valve) G 1¼
    Weight 1122,0 kg

    Ask a question
    CONTACT SELLER

    0428177419
